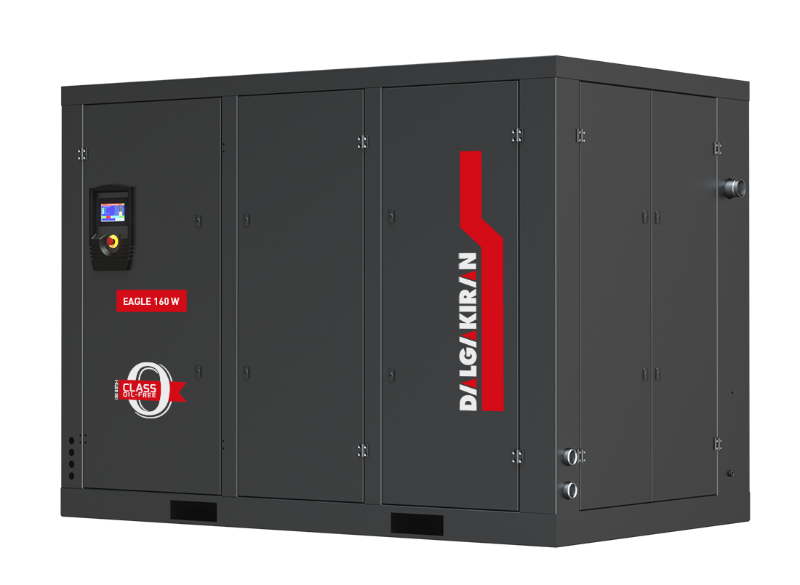

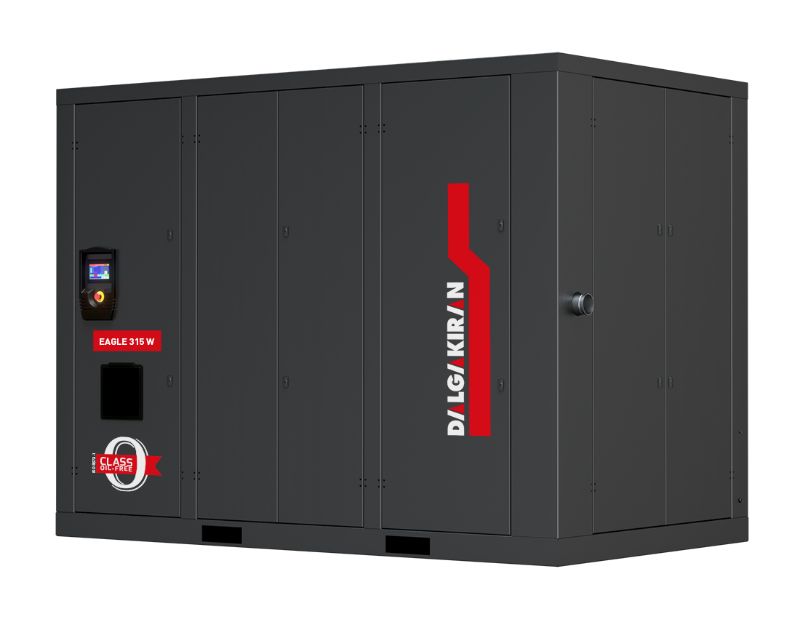

EAGLE Serisi | Vidalı Kompresörler

ISO 8573-1 Class 0’a göre tamamen yağsız basınçlı hava sunan yağsız vidalı kompresörlerimiz “TUV Rheinland” Almanya tarafından test edilmiş ve onaylanmıştır.

Model	Basınç				Kapasite				Motor Gücü		Hava Bağlantısı			Boyutlar (mm)Hava Soğutmalı / Su Soğutmalı						Ağırlık		Ses Seviyesi
	bar		psi		m3/min		cfm		kW/HP					En		Boy		Yükseklik		kg		dB(A)
EAGLE 37	7		100		6.00		211.9		37/50		G 2"			2450		1600		2160		2270/2285		76
	8.5		125		5.30		187.2
	10		145		4.80		169.5
EAGLE 45	7		100		7.50		264.9		45/60		G 2"			2450		1600		2160		2450/2460		76
	8.5		125		6.50		229.6
	10		145		5.90		208.4
EAGLE 55	7		100		9.40		332.0		55/75		G 2"			2450		1600		2160		2600/2610		77
	8.5		125		8.60		303.8
	10		145		7.50		264.9
EAGLE 75	7		100		12.70		448.6		75/100		G 2"			2450		1600		2160		2860/2850		77
	8.5		125		11.80		416.8
	10		145		10.20		360.3
EAGLE 90	8.5		125		12.70		448.6		90/125		G 2"			2450		1600		2160		2950/2940		78
	10		145		12.60		445.0
EAGLE 90 B	7		100		15.54		548.9		90/125		DN80			3085		1825		2450/2200		3650/3900		80
	8.5		125		13.20		466.2
	10		145		13.00		459.2
EAGLE 110	7		100		19.50		688.7		110/150		DN80			3085		1825		2450/2200		3750/4000		81
	8.5		125		17.70		625.2
	10		145		15.50		547.5
EAGLE 132	7		100		22.30		787.6		132/180		DN80			3085		1825		2450/2200		3900/4150		83
	8.5		125		20.90		738.2
	10		145		19.40		685.2
EAGLE 160	7		100		25.40		897.1		160/220		DN80			3085		1825		2450/2200		4150/4400		84
	8.5		125		25.40		897.1
	10		145		24.00		847.7
EAGLE 185	7		100		28.00		989.0		185/250		DN80			3085		1825		2450/2200		4150/4400		84
	8.5		125		28.00		989.0
	10		145		28.00		989.0
EAGLE 200	7		100		36.50		1289.2		200/270		DN100			3685/3465		2140		2715/ 2450		5900/6100		85
	8.5		125		34.00		1200.9
	10		145		31.60		1116.1
EAGLE 250	7		100		44.30		1564.7		250/340		DN100			3685/3465		2140		2715/ 2450		6100/6350		86
	8.5		125		40.50		1430.5
	10		145		36.40		1285.6
EAGLE 315	7		100		50.10		1769.5		315/430		DN100			3685/3465		2140		2715/ 2450		6300/6500		87
	8.5		125		48.70		1720.1
	10		145		44.20		1561.1
Model	Basınç			Kapasite								Motor Gücü	Hava Bağlantısı		Boyutlar (mm)Hava Soğutmalı / Su Soğutmalı						Ağırlık		Ses Seviyesi
				m3/min				cfm
	bar	psi		min		max		min		max		kW/HP			En		Boy		Yükseklik		kg		dB(A)
EAGLE 55 VSD	7	100		3.4		9.1		120.1		321.4		55/75	G 2"		2450		1600		2160		2675		77
	8.5	125		3.4		8.3		120.1		293.2
	10	145		3.4		7.0		120.1		247.2
EAGLE 75 VSD	7	100		3.4		12.1		120.1		427.4		75/100	G 2"		2450		1600		2160		2935		77
	8.5	125		3.4		11.3		120.1		399.1
	10	145		3.4		10.6		120.1		374.4
EAGLE 90 VSD	7	100		3.4		14.5		120.1		512.1		90/125	G 2"		2450		1600		2160		3025		75
	8.5	125		3.4		13.6		120.1		480.4
	10	145		3.4		13.2		120.1		466.2
EAGLE 110 VSD	7	100		10.0		19.7		353.2		695.8		110/150	DN80		3085		1825		2450/2200		4100/4350		82
	8.5	125		10.0		18.2		353.2		642.8
	10	145		10.0		17.0		353.2		600.4
EAGLE 132 VSD	7	100		10.40		22.2		367.3		784.1		132/180	DN80		3085		1825		2450/2200		4200/4400		84
	8.5	125		10.30		21.0		363.8		741.7
	10	145		10.30		19.6		363.8		692.3
EAGLE 160 VSD	7	100		10.00		26.9		353.2		950.1		160/220	DN80		3085		1825		2450/2200		4000/4200		85
	8.5	125		9.80		25.5		346.1		900.7
	10	145		9.80		23.5		346.1		830.0
EAGLE 185 VSD	7	100		10.30		29.5		363.8		1041.9		185/250	DN80		3085		1825		2450/2200		4600/4850		85
	8.5	125		10.20		28.1		360.3		992.5
	10	145		10.10		26.4		356.7		932.4
EAGLE 200 VSD	7	100		18.20		35.0		642.8		1236.2		200/270	DN100		3685/3465		2140		2715/2450		6300/6550		85
	8.5	125		18.00		31.4		635.8		1109.0
	10	145		17.90		28.5		632.2		1006.6
EAGLE 250 VSD	7	100		17.30		44.5		611.0		1571.7		250/340	DN100		3685/3465		2140		2715/2450		6650/6700		87
	8.5	125		17.20		41.2		607.5		1455.2
	10	145		17.00		37.7		600.4		1331.6
EAGLE 315 VSD	7	100		17.50		48.8		618.1		1723.6		315/430	DN100		3685/3465		2140		2715/2450		6650/6900		88
	8.5	125		17.40		46.6		614.6		1645.9
	10	145		17.30		44.9		611.0		1585.9
